Azure VMs cost reduction tips for dev and test environment

I believe Azure VMs is the most popular feature for all Azure users, and Azure VM usage would occupy most charge among your Azure billing. You will require high performance VM at the beginning because it would be needed to setup something to build up your development or test enviroments, but such requirements are not so much after the setup. There are two good options to offer good tips for your wallet-friendly.

• Choose B-Series type for Azure VMs
• Change disk type from Premium to Standard when your VMs are deallocated

Keep in mind that don't adopt this concept into your production envrionments.

Choose B-Series type for Azure VMs

I believe no need to explain too much about this topic. B-Serise is burstable instances. This type of instances offers a quite good cost effective way to utilize Azure VMs.
https://azure.microsoft.com/en-us/blog/introducing-b-series-our-new-burstable-vm-size/

Change disk type from Premium to Standard when your VMs are deallocated

This is a little bit tricky than just choosing B-Series VMs. You might misundersand that you can't change Disk types after attaching your disks to your Azure VMs. It's partially true because it's not possible to change Disk Types when your Azure VMs are running like below.

But you can find quite interesting description in red box on this image. You can change your disk types when your Azure VMs are deallocated like below.

You can choose three disk types - "Premium SSD", "Standard SSD" or "Standard HDD". What's the pro-con for them? You can confirm details both performance and pricing perspectives by referring articles below.

• Select a disk type for Azure IaaS Windows VMs - managed disks - Azure Windows Virtual Machines | Microsoft Docs
• Pricing - Managed Disks | Microsoft Azure

"Premium SSD" has much better IOPS than cheapest type "Standard HDD" but the price is almost three times. In addition this, test and development environments won't be utilized so much IOPS in most of cases. You should acquire quite good cost reduction by following this tips.

Tips to utilize Windows Server containers on AKS

Microsoft has announced that Azure Kubernetes Service (AKS) supports Windows Server containers as GA. This is quite useful and essential feature to containerize your ASP.NET Framework applications. In this article, you can acquire tiny tips to utilize Windows Server containers on AKS.

Enable Azure CNI (advanced) for Windows Server Container

Note that AKS requires to enable " Azure CNI (advanced) network plugin" to utilize Windows Server Containers. Choose "Advanced" as Network configuration like below when you try to create AKS clusters.

You can confirm your AKS clusters are enabled Azure CNI on Azure Portal.

Next, you need to create node pools as Windows OS type to deploy your Windows Server Container applications like below.

Windows Server Container size

Windows Server Container requires huge capacity than Linux images. I have just pushed a simple hello world ASP.NET application into my Azure Container Repository(ACR) but it uses 1.08GB on my ACR. It will take a much time to upload your container images first time, so please note your network bandwidth not only ACR capacities when you push your container images into ACRs.

Reference

• Announcing the general availability of Windows Server containers and private clusters for Azure Kubernetes Service | Azure Blog and Updates | Microsoft Azure
• Create a Windows Server container on an Azure Kubernetes Service (AKS) cluster - Azure Kubernetes Service | Microsoft Docs

Manage authorization for your application with user account attributes

Azure AD offers quite useful features to manage accessibilities for your applications. I believe most Azure developers has already utilized user groups to assign privilege easily, but I guess many people don’t know “Dynamic User” user group. This user group enable to authorize users with user account attributes.

Let's setup to manage accessibilities with job title by using Dynamic User group. Here are accounts which are verified by the group.

How to create Dynamic User group

Let’s go to Azure Portal, choose Azure Active Directory, and click to “New Group” at first .

You can choose “Dynamic User” as membership type like below.

Click “Add dynamic query” to setup query to authorize users. This sample authorize users who contain “Principal” for their job title. It’s also possible to create complex queries to meet your business requirements.

Click “Validate Rules (Preview)” like below. You can confirm your queries will works well or not.

Reduce AKS clusters cost by setup zero node count for user mode node pools

Here is interesting article - Release Release 2020-04-13 · Azure/AKS · GitHub. You can find that "AKS now allows User nodepools to scale to 0" in the article. This feature enables to reduce AKS cost in your environments. I believe you would try to change node count by using az command, but it won't work well at this time - 5/1/2020. Please note this setting is possible for only User mode node pools not System mode.

$subcriptionId = "YOUR SUBSCRIPTION ID"
$rg = "YOUR RESOURCE GROUP"
$clustername = "YOUR AKS CLUSTER NAME"
$poolname = "YOUR NODE POOL NAME"
$count = 0
az aks scale --resource-group $rg --name $clustername --node-count $count --nodepool-name $poolname

This issue is caused that az command doesn't support to setup zero node count for user mode node pools at this time. There are two options to achieve this setting here.

• Change node count on https://resources.azure.com/
• Use REST API to change node count

Change node count on https://resources.azure.com/

Open https://resources.azure.com/ and find your user mode node pool of your AKS clusters. Put "Edit" button to enable to change Azure resources setting and edit value of "count" as zero.

Please note this setting is possible only User mode node pools. It will fail to change node count into zero for System mode node pools.

Use REST API to change node count

You can REST API by using az command. Here is example to setup zero node count for user mode node pools.

$subcriptionId = "YOUR SUBSCRIPTION ID"
$rg = "YOUR RESOURCE GROUP"
$clustername = "YOUR AKS CLUSTER NAME"
$poolname = "YOUR NODE POOL NAME"
$count = 0

$body = "{  \`"properties\`": {    \`"count\`": ${count} } }"
$header = "{\`"Content-Type\`": \`"application/json\`"}"
az rest -u "https://management.azure.com/subscriptions/${subcriptionId}/resourceGroups/${rg}/providers/Microsoft.ContainerService/managedClusters/${clustername}/agentPools/${poolname}?api-version=2020-03-01" --method put --headers $header --body $body

You can confirm this setting on Azure Portal.

Reference

• Release Release 2020-04-13 · Azure/AKS · GitHub
• Native Azure REST API calls now available in Azure CLI 2.0.67+
• `az rest` cannot parse json body · Issue #9742 · Azure/azure-cli · GitHub
• ダブルクオテーション ( " ) を文字列値に含める方法[PowerShell] : バヤシタ

Spot node pool limitation for AKS

Azure Kubernetes Service(AKS) recently offers spot node pool feature as preview - 4/30/2020 right now. This feature enable Azure developers to reduce VM costs by using spot VMs for AKS clusters.
Refer to Preview - Add a spot node pool to an Azure Kubernetes Service (AKS) cluster - Azure Kubernetes Service | Microsoft Docs. Here is a sample command to execute on Azure Portal, but you need to enable this preview feature by following the article before running commands below. You can execute this command successfully.

az aks nodepool add \
    --resource-group YOUR-RESOURCE-GROUP \
    --cluster-name YOUR-AKS-CLUSTER-NAME \
    --name spotnode01 \
    --priority Spot \
    --node-vm-size Standard_DS2_v2  \
    --node-count 1 \
    --eviction-policy Delete \
    --spot-max-price -1 \
    --no-wait

I guess you also want to save cost by using burstable instances named "B series". You can execute a command to specify B series instances but it will be failed .

az aks nodepool add \
    --resource-group YOUR-RESOURCE-GROUP \
    --cluster-name YOUR-AKS-CLUSTER-NAME \
    --name spotnode02 \
    --priority Spot \
    --node-vm-size Standard_B2ms \
    --node-count 1 \
    --eviction-policy Delete \
    --spot-max-price -1 \
    --no-wait

Here is a screenshot for commands above. You can execute commands to add node pools by using spot VMS, but provisions will fail.

This is limitation of spot VMs. Refer to Use Azure Spot VMs - Azure Windows Virtual Machines | Microsoft Docs. B-series and Promo versions of any size (like Dv2, NV, NC, H promo sizes) are not supported at this time.

References

• Use Azure Spot VMs - Azure Windows Virtual Machines | Microsoft Docs
• Preview - Add a spot node pool to an Azure Kubernetes Service (AKS) cluster - Azure Kubernetes Service | Microsoft Docs

Upload Camera images into Azure Blob Storage by PowerApps

As you know, PowerApps offers a bunch of useful features to build up powerful applications easily. It's also possible to retrieve Microsoft Azure Platform not only Power Platform. You can acquire knowledge how upload images token by Camera into Azure Blob Storage. Here are steps to build up it.

1. Azure Storage setup on Azure Portal
2. Create Connection for Azure Storage on PowerApps Studio for Web
3. Create apps by using the Connection on PowerApps Studio for Web

Azure Storage setup on Azure Portal

At first, open Azure Portal. Create Azure Storage account or choose existing one to utilize for PowerApps. Create new container to store images from PowerApps like below. The new container name is "images" in this example.

Pick up and save "Storage account name" and "Key1" into notepad to make "Connection" on PowerApps.

Create new Connection for Azure Storage on PowerApps Studio for Web

Next, open PowerApps Studio for Web. Choose "Connection" from left menus. You need to create new connection for Azure Storage at first.

You will find listed connections which someone has already created like below. Choose "New connection" to create newly your Azure Storage connection.

Find "Azure Blob Storage" by using search box like below and click "+" button.

Put "Storage account name" and "key" into inputboxes to complete this steps.

This isn't mandatory, but I also recommend to change your connection name to find easily in later. Find you connection by sorting with "Modifed" like below.

You can change your connection name like here.

Now, you have completed to make new connection for Azure Blob Storage.

Create apps by using the Connection on PowerApps Studio for Web

Open PowerApps Studio for Web and choose to create Blank new app as first. Insert "Camera" control by choosing "Insert -> Media -> Camera" like below.

Insert new button into your app. You will find two controls as "Camera1" and "Button1" like below.

Next, add your connection for Azure Blob Storage. Choose an icon from left side and find your connection by following step an image below.

Put formulas into "OnSelect" action on Button control by following an image below.

Set( imagename, "driverface" & GUID() & ".png");
AzureBlobStorage.CreateFile("images", imagename, Camera1.Photo);

Run your PowerApps

Run your application and click button, so you can find images on Azure Portal like below.

Create Excel based simple apps with PowerApps

PowerApps support for various types of data sources. Of course, it's possible to connect with on-premise resources by using On-Premise Data Gateway not only Microsoft Azure data sources. In this article, you can acquire knowledge to build up simple applications to edit Excel files on OneDrive.

Create Excel file and upload it into OneDrive

Create Excel file to utilize in your PowerApps with reference to an image below. Please note to enable "My table has headers" when you create a table on the Excel file.

Change your "Table Name" like below. This name will be used on PowerApps.

Upload this Excel file into your OneDrive.

Steps to generate Excel based apps

Go to https://preview.create.powerapps.com/studio/# and choose "Connections".

Choose "New connection".

Choose "OneDrive for Business" and click "Create" to authorize with your OneDrive for Business account.

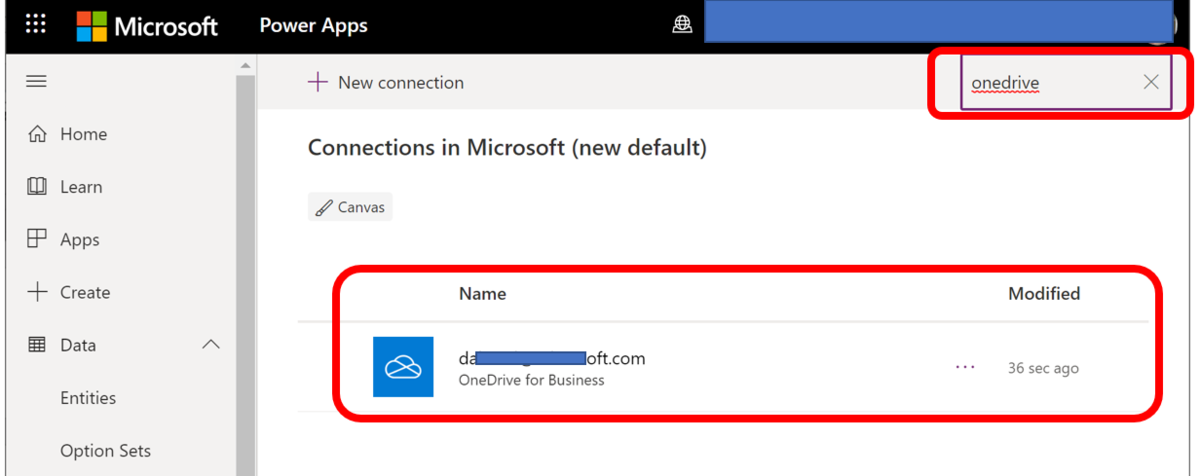

Confirm your connection like below.

Next, go to "New" tab and choose "Phone layout" on OneDrive for Business.

Choose OneDrive for Business connection which you have created just before. Next, choose your Excel file on OneDrive for Business account like below.

Choose a table in your Excel file.

It takes a few minutes to generate your app based on your table. You will find app below.

Update your PowerApps application

Choose "company name" area and find formula like below.

Update a column from "company" to "job title". This change will be immediately effected into your app like below.
