Create VSTS Release Definitions to deploy Windows Docker images into Service Fabric cluster

This article requires to setup below environment at first. Please refer to them before following this article.

• How to build ASP.NET Framework Docker images on VSTS build tasks - normalian blog
• Create Service Fabric Deployment Package with Docker images on VSTS Build Task - normalian blog

You have to complete all setups of CI/CD cycle using Windows Docker images, Service Fabric cluster and VSTS except for VSTS Release Definitions before following this article. I believe you have already created artifacts using by your VSTS Build definition to deploy into your Service Fabric cluster. Now, you can deploy the artifact by following this article.

Create a Release Definition to use artifacts created by your Build Definition

Choose "Releases" item from the top of VSTS menus, click "+" icon from left side and choose create "Create release definition", so you can find below diagrams.

Next, click "Add artifact", choose "Build" as "Source type" and setup your "Project" and "Source(Build definition)" which you have already created before following this article. Refer to below image if you need.

Next, choose "Add environment" box and choose "Azure Service Fabric Deployment". Note that you need to complete
How to setup Service Fabric connections on VSTS - normalian blog to setup this. Refer to below image and table as you need.

Parameter Name	Value	note
Application Package	$(system.defaultworkingdirectory)/**/drop/applicationpackage	-
Cluster Connection	sf-sample01-1709cluster	You must finish How to setup Service Fabric connections on VSTS - normalian blog to setup this
Publish Profile	$(system.defaultworkingdirectory)/**/drop/projectartifacts/**/PublishProfiles/Cloud.xml	-

Execute Release definition

After completion to create the Release Definition, click "+Rlease" link on VSTS portal.

Next, you can execute your deployment process by clicking "Deploy" on VSTS portal like below. After execution of the process, you also be able to watch process progress by choosing "Logs" tab on VSTS portal.

This is "Logs" tab on VSTS.

Reference

• Deploy an Azure Service Fabric application with continuous integration (Team Services) | Microsoft Docs
• How to build ASP.NET Framework Docker images on VSTS build tasks - normalian blog
• Create Service Fabric Deployment Package with Docker images on VSTS Build Task - normalian blog
• How to setup Service Fabric connections on VSTS - normalian blog

Create Service Fabric Deployment Package with Docker images on VSTS Build Task

This article requires to setup below environment at first. Please refer to them before following this article.

• How to build ASP.NET Framework Docker images on VSTS build tasks - normalian blog

I believe you have already created your own Docker images and pushed them into your Azure Container Registry. Now, you also need to specify the images with Service Fabric setting files to use them by your Service Fabric cluster.

How to setup Build tasks on VSTS

You need to add 5 tasks after your "Push an image" task, but you also need to add "PowerShell Script" task if you might need to use capital letters in your project names or something. Refer to How to override values of environment variables on VSTS tasks - normalian blog to override environment variables.

Now, we will introduce how to setup the tasks.

• Replace Tokens
• Build solution
• Update Service Fabric Manifests
• Copy Files
• Publish Build Artifacts

Replace Tokens

You need to update ServiceManifest.xml to specify your Docker image for your Service Fabric cluster.

Parameter Name	Value	note
Root directory	Trunk/SFwithASPNetApp/SFwithASPNetApp	Specify as Service Fabric directory
Target files	**/*.xml	Specify to include ServiceManifest.xml

You need to edit your ServiceManifest.xml like below

<?xml version="1.0" encoding="utf-8"?>
<ServiceManifest Name="GuestContainer1Pkg"
                 Version="1.0.0"
                 xmlns="http://schemas.microsoft.com/2011/01/fabric"
                 xmlns:xsd="http://www.w3.org/2001/XMLSchema"
                 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <ServiceTypes>
    <!-- This is the name of your ServiceType.
         The UseImplicitHost attribute indicates this is a guest service. -->
    <StatelessServiceType ServiceTypeName="GuestContainer1Type" UseImplicitHost="true" />
  </ServiceTypes>

  <!-- Code package is your service executable. -->
  <CodePackage Name="Code" Version="1.0.0">
    <EntryPoint>
      <!-- Follow this link for more information about deploying Windows containers to Service Fabric: https://aka.ms/sfguestcontainers -->
      <ContainerHost>
        <ImageName>"your acr account name".azurecr.io/#{Build.Repository.Name}#:#{Build.BuildId}#</ImageName>
      </ContainerHost>
    </EntryPoint>
    <!-- Pass environment variables to your container: -->
    <!--
    <EnvironmentVariables>
      <EnvironmentVariable Name="VariableName" Value="VariableValue"/>
    </EnvironmentVariables>
    -->
  </CodePackage>
  .....

Build solution

You need to specify *.sfproj file to build your Service Fabric application like below.

Parameter Name	Value	note
Solution	Trunk/SFwithASPNetApp/SFwithASPNetApp/SFwithASPNetApp.sfproj	Specify your Service Fabric cluster *.sfproj file
MSBuild Arguments	/t:Package /p:PackageLocation=$(build.artifactstagingdirectory)\applicationpackage	Specify to create Service Fabric package
Platform	$(BuildPlatform)	-
Configuration	$(BuildConfiguration)	-

Update Service Fabric Manifests

You need to update your ServiceManifest.xml version number by environment variable.

Parameter Name	Value	note
Update Type	Manifest versions	-
Application Package	$(build.artifactstagingdirectory)\applicationpackage	-
Version Value	.$(Build.BuildNumber)	-

Copy Files

You also need to copy your application xml files.

Parameter Name	Value	note
Source Folder	$(build.sourcesdirectory)	-
Contents	**\PublishProfiles\*.xml **\ApplicationParameters\*.xml	-

Publish Build Artifacts

Finally, you can publish your build artifacts and you can use it in your Release process.

Parameter Name	Value	note
Path to publish	$(build.artifactstagingdirectory)	-
Artifact name	drop	-
Artifact publish location	Visual Studio Team Services/TFS	-

How to confirm build result

You can watch your build result logs in VSTS Build page like below, and you also can find your build number like below. The number is used for Docker images tags.

References

• Replace configuration files with environment variables on VSTS tasks - normalian blog
• How to override values of environment variables on VSTS tasks - normalian blog
• How to setup VSTS Private Agent for build Windows Server ver 1709 base Docker images - normalian blog
• How to build ASP.NET Framework Docker images on VSTS build tasks - normalian blog
• How to setup Service Fabric connections on VSTS - normalian blog

Replace configuration files with environment variables on VSTS tasks

I believe you definitely want to replace values of some files in your projects with environments variables when you setup Visual Studio Team Services Build/Release processes. There are some ways to replace the values, and I will introduce to use e "Replace Tokens" published in Marketplace.

How to use "Replace Tokens" on VSTS

Input "Replace Tokens" into search box when you add new tasks in your VSTS Build/Release process and click "Install" to initialize it.

After adding "Replace Tokens" task in your process, change "Root directory" and "Target files" to specify which files you want to change. In below example, I specify *.xml files in my "SFwithASPNetApp" project.

And finally refer below a part of Service Fabric ServiceManifest.xml. This xml file uses "Build.Repository.Name" and "Build.BuildId" environment variables to specify Docker image name.

  <CodePackage Name="Code" Version="1.0.0">
    <EntryPoint>
      <!-- Follow this link for more information about deploying Windows containers to Service Fabric: https://aka.ms/sfguestcontainers -->
      <ContainerHost>
        <ImageName>mynormalianregister.azurecr.io/#{Build.Repository.Name}#:#{Build.BuildId}#</ImageName>
      </ContainerHost>
    </EntryPoint>

The Docker image name will replace from "mynormalianregister.azurecr.io/#{Build.Repository.Name}#:#{Build.BuildId}#" into "mynormalianregister.azurecr.io/us-customer-demo-projects:111" in this case.

Note that you must put "}#" not "}" as suffix token.

References

• VSTS Build: Replacing token with build number - Stack Overflow
• Variables in Release Management | Microsoft Docs
• Build variables | Microsoft Docs

How to override values of environment variables on VSTS tasks

As you know VSTS can use environment variables in VSTS Build and Release tasks. It's really useful to dynamically change values of build and release process like below, but you should sometimes wants to override even in running tasks.

I have built Windows Docker images on with VSTS build tasks by specifying its name as $(Build.Repository.Name), the actual name is "US-XXXXXX-Demo-Projects", and I store them into Azure Container Registry. But unfortunately, Azure Container Registry stores Docker images as lowercase letters like below.

As this result, you need to change Docker image name from $(Build.Repository.Name), change repository name itself or override environment variable. This article shows how to override the value.

How to override environment variable values on VSTS tasks

You need to add "PowerShell" tasks into your build process, specify its "Type" as "Inline Script" and edit "Inline Script" like below.

$LowerBuildRepositoryName = "$(Build.Repository.Name)".ToLower()
Write-Output ("##vso[task.setvariable variable=Build.Repository.Name;]$LowerBuildRepositoryName")

Write-Host "Build.Repository.Name variable updates"

You can override any variables as you like to edit the inline script.

References

• Build variables | Microsoft Docs
• Variables in Release Management | Microsoft Docs

What is workaround when you got error message "failure in a Windows system call: No hypervisor is present on this system." on Service Fabric Explorer

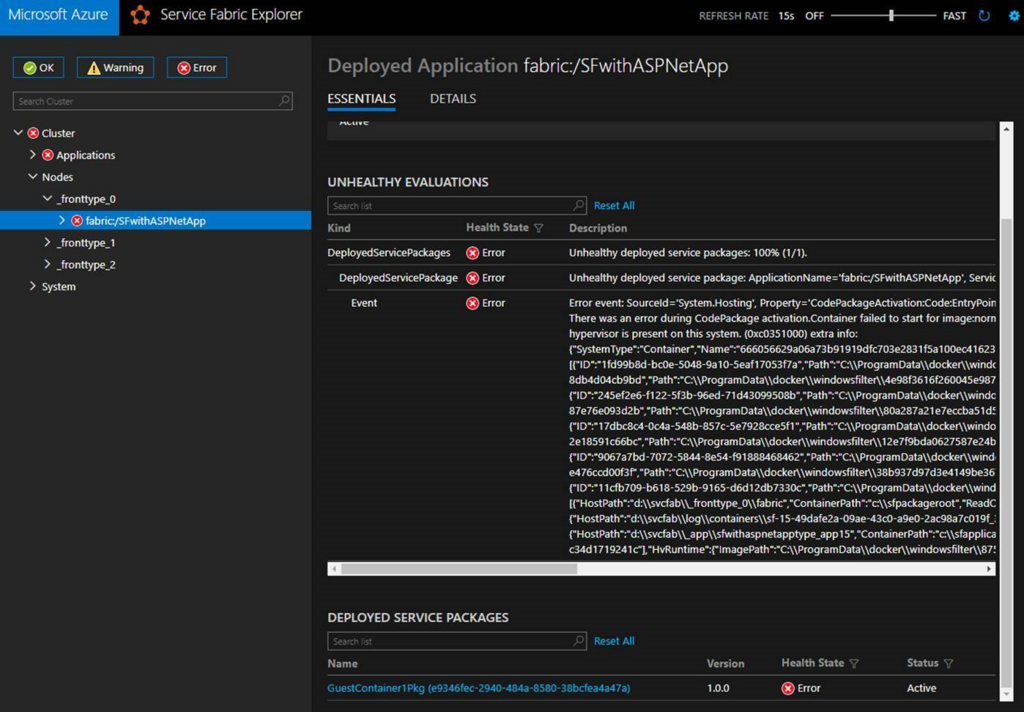

As you know, we can deploy Docker Container images into Service Fabric clusters, but you need to note when you specify "Instance Size" of Service Fabric when you use Windows Container images. You will get below error messages if you don't specify "Ev3" or "Dv3" for Azure SKUs even though you use "hyperv isolation mode".

There was an error during CodePackage activation.Container failed to start for image:"your container image".azurecr.io/"your image name":"your tag name". container 4ef6c4ec64f3006db9f5cbe9541dcb77994ccd1ac8d018180b5d08ba0cf95803 encountered an error during CreateContainer: failure in a Windows system call: No hypervisor is present on this system. (0xc0351000) extra info: {"SystemType":"Container","Name":"4ef6c4ec64f3006db9f5cbe9541dcb77994ccd1ac8d018180b5d08ba0cf95803","Owner":"docker","IsDummy":false,"IgnoreFlushesDuringBoot":true,"LayerFolderPath":"C:\\ProgramData\\docker\\windowsfilter\\4ef6c4ec64f3006db9f5cbe9541dcb77994ccd1ac8d018180b5d08ba0cf95803","Layers":[{"ID":"1fd99b8d-bc0e-5048-9a10-5eaf17053f7a","Path":"C:\\ProgramData\\docker\\windowsfilter\\b8452e48f79716c4f811a2c80d3f32d4a37c9fb98fb179c6cffce7f0beed1e66"},{"ID":"758bc832-f0e5-55a8-a2ca-8db4d04cb9bd","Path":"C:\\ProgramData\\docker\\windowsfilter\\4e98f3616f260045e987e017b3894dcfa250c7f595997110c9900b02488e05f3"},{"ID":"91a87634-6f3e-59a9-9578-33049cc2ebaa","Path":"C:\\ProgramData\\docker\\windowsfilter\\f18e514d9d6c1d8d892856392b96f939d9f992cc7395d0b2d6f05e22216ac737"},{"ID":"245ef2e6-f122-5f3b-96ed-71d43099508b","Path":"C:\\ProgramData\\docker\\windowsfilter\\715c1bdc318c7b012e2f70d3798f4e1e79a96d2fa165bac377f7540030f1a1a6"},{"ID":"22fbc57d-ea4d-552b-9b3a-87e76e093d2b","Path":"C:\\ProgramData\\docker\\windowsfilter\\80a287a21e7eccba51d5110e25517639351e87f52067a7df382edcdaf312138b"},{"ID":"a451ab3e-a3fd-5db9-8c91-7d69034cd20a","Path":"C:\\ProgramData\\docker\\windowsfilter\\94c121ca13cfde5bf579f36687d5405d0487ad972dd18ff8f598870aa3a72b73"},{"ID":"17dbc8c4-0c4a-548b-857c-5e7928cce5f1","Path":"C:\\ProgramData\\docker\\windowsfilter\\9e9fa399255bb3ba2717dcdd6ca06d493fa189c6d6a0276d0713f2a524dd3d2a"},{"ID":"20a857ef-13bb-55cf-8a67-2e18591c66bc","Path":"C:\\ProgramData\\docker\\windowsfilter\\12e7f9bda0627587e24bb4d5a3fb91c3ed9b6b6943ac1d35244afac547796dd1"},{"ID":"6d4958bb-c89f-5390-9420-5ddaff8ef0ca","Path":"C:\\ProgramData\\docker\\windowsfilter\\a4f9f68812499ffdaed2e84a6b84d8d878286f4d726b91bb7970b618f1d8dd65"},{"ID":"9067a7bd-7072-5844-8e54-f91888468462","Path":"C:\\ProgramData\\docker\\windowsfilter\\7efa7258bfec74a13dc8bbd93d4d0bc108ac6443ae0691198ff6a9a692c703f7"},{"ID":"edf15855-a46a-593c-a2c2-e476ccd00f3f","Path":"C:\\ProgramData\\docker\\windowsfilter\\38b937d97d3e4149be3671ae411441b9e839e2e0e40c5f626479357a0de8da00"},{"ID":"b4b0754d-1b7f-5413-ad1c-63616d0c72ff","Path":"C:\\ProgramData\\docker\\windowsfilter\\8753c8e07b95e6d80767dd39ace29e6e1108992ec72e46140ba990287272f418"},{"ID":"11cfb709-b618-529b-9165-d6d12db7330c","Path":"C:\\ProgramData\\docker\\windowsfilter\\d4a3ef41985c9ed1d7308f1f8603e8527154104bd7b308fed9f731f863d29314"}],"HostName":"4ef6c4ec64f3","MappedDirectories":[{"HostPath":"d:\\svcfab\\log\\containers\\sf-15-aa4017f4-24d0-437a-b7b5-a48db8717a13_3b9b217e-374e-48ea-8ee5-ccf597e47d34","ContainerPath":"c:\\sffabriclog","ReadOnly":false,"BandwidthMaximum":0,"IOPSMaximum":0},{"HostPath":"d:\\svcfab\\_fronttype_0\\fabric","ContainerPath":"c:\\sfpackageroot","ReadOnly":true,"BandwidthMaximum":0,"IOPSMaximum":0},{"HostPath":"c:\\program files\\microsoft service fabric\\bin\\fabric\\fabric.code","ContainerPath":"c:\\sffabricbin","ReadOnly":true,"BandwidthMaximum":0,"IOPSMaximum":0},{"HostPath":"d:\\svcfab\\_app\\sfwithaspnetapptype_app15","ContainerPath":"c:\\sfapplications\\sfwithaspnetapptype_app15","ReadOnly":false,"BandwidthMaximum":0,"IOPSMaximum":0}],"SandboxPath":"C:\\ProgramData\\docker\\windowsfilter","HvPartition":true,"EndpointList":["a118be34-14d8-48df-87be-2abaf0f40160"],"HvRuntime":{"ImagePath":"C:\\ProgramData\\docker\\windowsfilter\\8753c8e07b95e6d80767dd39ace29e6e1108992ec72e46140ba990287272f418\\UtilityVM"},"Servicing":false,"AllowUnqualifiedDNSQuery":true,"DNSSearchList":"SFwithASPNetApp"}

Refer to Create an Azure Service Fabric container application | Microsoft Docs and watch the note. Next, confirm your ApplicationManifest.xml file in your Service Fabric project. It should be specified as "hyperv" isolation mode in attribute of "ContainerHostPolicies " tag if you have hyperv role enabled.

  <ServiceManifestImport>
    <ServiceManifestRef ServiceManifestName="GuestContainer1Pkg" ServiceManifestVersion="1.0.5" />
    <ConfigOverrides />
    <Policies>
      <ContainerHostPolicies CodePackageRef="Code" Isolation="hyperv">
        <RepositoryCredentials AccountName="your account name" Password="your password" PasswordEncrypted="false"/>
        <PortBinding ContainerPort="80" EndpointRef="GuestContainer1TypeEndpoint"/>
      </ContainerHostPolicies>
    </Policies>
  </ServiceManifestImport>
  <DefaultServices>

This error is caused by "you are running hyperV container on a machine that does not have hyperv role enabled", so you probably need to recreate your Service Fabric cluster as "Ev3" or "Dv3" instance size, because it might not be able to change SKU into different series.

References

• Create an Azure Service Fabric container application | Microsoft Docs
• Virtual Machine series | Microsoft Azure
• What is workaround when your got error messages "There was an error during download.Failed" while downloading container images - normalian blog

How to setup VSTS Private Agent to build Windows Server ver 1709 base Docker images

Do you know Windows had breaking changes for their virtualization technologies and I referred about that in Windows Container Version Compatibility | Microsoft Docs. This change will cause an error when you will build Windows Server ver 1709 base Docker images on VSTS build tasks.
Unfortunately, VSTS probably doesn't offer Hosted which are available to build Windows Server ver 1709 base Docker images. As far as I have checked, there are some "Hosted Agent" in Microsoft-hosted agents for VSTS | Microsoft Docs like below.

• Hosted VS2017 if your team uses Visual Studio 2017 - vsts-image-generation/Vs2017-Server2016-Readme.md at master · Microsoft/vsts-image-generation · GitHub
• Hosted Linux if your team uses development tools on Ubuntu.
• Hosted macOS Preview if your team uses development tools on macOS.
• Hosted if your team uses Visual Studio 2013 or Visual Studio 2015.

It was failed when I built my Windows Server ver 1709 base Docker images on VSTS build tasks, so you also need to setup your Private Agent for building Windows Server ver 1709 base Docker images. You can setup the VM following this article!

Step by Step to step Windows Server version 1709 based VM as Private Agent

You need to create new Virtual Machine on Azure Portal. Choose "Windows Server, version 1709 with Containers" for base VM, because it contains "docker.exe" command. But keep in mind the image doesn't contain "docker-compose".

You don't need to add special settings when you create VMs, but don't setup Network Security Group as completely closed to enable accessible VSTS service.

Access the VM using Remote Desktop and install Visual Studio 2017 into the VM, because the VM doesn't contain MSBuild and other commands for VSTS Build/Release processes. Follow below commands.

C:\Users\azureuser>powershell
Windows PowerShell
Copyright (C) Microsoft Corporation. All rights reserved.

PS C:\Users\azureuser> curl https://aka.ms/vs/15/release/vs_community.exe -O vs_community.exe
PS C:\Users\azureuser> dir


    Directory: C:\Users\azureuser


Mode                LastWriteTime         Length Name
----                -------------         ------ ----
d-r---        3/22/2018   4:19 PM                3D Objects
d-r---        3/22/2018   4:19 PM                Contacts
d-r---        3/22/2018   4:19 PM                Desktop
d-r---        3/22/2018   4:19 PM                Documents
d-r---        3/22/2018   4:19 PM                Downloads
d-r---        3/22/2018   4:19 PM                Favorites
d-r---        3/22/2018   4:19 PM                Links
d-r---        3/22/2018   4:19 PM                Music
d-r---        3/22/2018   4:19 PM                Pictures
d-r---        3/22/2018   4:19 PM                Saved Games
d-r---        3/22/2018   4:19 PM                Searches
d-r---        3/22/2018   4:19 PM                Videos
-a----        3/22/2018   4:24 PM        1180608 vs_community.exe

PS C:\Users\azureuser> .\vs_community.exe

I chose below settings in my case, but change the settings for your environment if you need.

After Visual Studio installation has completed, add MSBuild execution folder path into PATH environment variable like below.

PS C:\Users\azureuser> setx /M PATH "%PATH%;C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\MSBuild\15.0\B
in"

SUCCESS: Specified value was saved.
PS C:\Users\azureuser>

Next, you also need to add "docker-compose" to build with it, because this base VM contains only just "docker" command. Follow below commands to install it.

PS C:\> [Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12
PS C:\> Invoke-WebRequest "https://github.com/docker/compose/releases/download/1.20.0/docker-compose-Windows-x86_64.exe" -UseBasicParsing -OutFile $Env:ProgramFiles\docker\docker-compose.exe
PS C:\>

Finally, you need to setup VSTS Private Agent. Refer to How to setup your CentOS VMs as VSTS Private Agent - normalian blog to pick up "access token" for setup Private Agent. Note you need to setup user account of this Private Agent as "NT AUTHORITY\SYSTEM".

PS C:\agent> .\config.cmd

>> Connect:

Enter server URL > https://"your vsts account name".visualstudio.com
Enter authentication type (press enter for PAT) >
Enter personal access token > ****************************************************
Connecting to server ...

>> Register Agent:

Enter agent pool (press enter for default) > "Your Agent Pool Name"
Enter agent name (press enter for VSTSPAVM01) >
Scanning for tool capabilities.
Connecting to the server.
Successfully added the agent
Testing agent connection.
Enter work folder (press enter for _work) >
2018-03-18 05:09:24Z: Settings Saved.
Enter run agent as service? (Y/N) (press enter for N) > Y
Enter User account to use for the service (press enter for NT AUTHORITY\NETWORK SERVICE) > NT AUTHORITY\SYSTEM
Granting file permissions to 'NT AUTHORITY\SYSTEM'.
Service vstsagent.daisami-online.VSTSPAVM01 successfully installed
Service vstsagent.daisami-online.VSTSPAVM01 successfully set recovery option
Service vstsagent.daisami-online.VSTSPAVM01 successfully configured
Service vstsagent.daisami-online.VSTSPAVM01 started successfully
PS C:\agent>

Now, you can choose your Private Agent in your VSTS Build/Release processes.

Note: What will be error messages if you haven't complete docker-compose

You will get "##[error]Unhandled: Failed which: Not found docker: null" message from your VSTS build task.

2018-03-17T21:07:37.4182183Z ##[section]Starting: Build an image
2018-03-17T21:07:37.4186946Z ==============================================================================
2018-03-17T21:07:37.4187316Z Task         : Docker
2018-03-17T21:07:37.4187693Z Description  : Build, tag, push, or run Docker images, or run a Docker command. Task can be used with Docker or Azure Container registry.
2018-03-17T21:07:37.4188244Z Version      : 0.3.10
2018-03-17T21:07:37.4188534Z Author       : Microsoft Corporation
2018-03-17T21:07:37.4188879Z Help         : [More Information](https://go.microsoft.com/fwlink/?linkid=848006)
2018-03-17T21:07:37.4189247Z ==============================================================================
2018-03-17T21:07:37.6890544Z ##[error]Unhandled: Failed which: Not found docker: null
2018-03-17T21:07:37.6953107Z ##[section]Finishing: Build an image

Note: What will be error messages if you build Windows Server ver 1709 images with "Hosted VS2017" agent

You will get "The following Docker images are incompatible with the host operating system: [microsoft/aspnet:4.7.1-windowsservercore-1709]. Update the Dockerfile to specify a different base image." message from your VSTS build task.

2018-03-17T21:02:41.2336315Z
2018-03-17T21:02:41.2336964Z Build FAILED.
2018-03-17T21:02:41.4137038Z
2018-03-17T21:02:41.4138305Z "D:\a\1\s\Trunk\SFwithASPNetApp\SFwithASPNetApp.sln" (default target) (1) ->
2018-03-17T21:02:41.4139002Z "D:\a\1\s\Trunk\SFwithASPNetApp\docker-compose.dcproj" (default target) (3) ->
2018-03-17T21:02:41.4139575Z (DockerComposeBuild target) ->
<b>2018-03-17T21:02:41.4141190Z   C:\Program Files (x86)\Microsoft Visual Studio\2017\Enterprise\MSBuild\Sdks\Microsoft.Docker.Sdk\build\Microsoft.Docker.targets(111,5): error : The following Docker images are incompatible with the host operating system: [microsoft/aspnet:4.7.1-windowsservercore-1709]. Update the Dockerfile to specify a different base image. See http://aka.ms/DockerToolsTroubleshooting for more details. [D:\a\1\s\Trunk\SFwithASPNetApp\docker-compose.dcproj]</b>
2018-03-17T21:02:41.4142524Z
2018-03-17T21:02:41.4142996Z     0 Warning(s)
2018-03-17T21:02:41.4143435Z     1 Error(s)
2018-03-17T21:02:41.4143702Z
2018-03-17T21:02:41.4144142Z Time Elapsed 00:14:00.47
2018-03-17T21:02:43.2578358Z ##[error]Process 'msbuild.exe' exited with code '1'.
2018-03-17T21:02:44.0944814Z ##[section]Finishing: Build solution
2018-03-17T21:02:44.1143215Z ##[section]Starting: Post Job Cleanup
2018-03-17T21:02:44.1300074Z Cleaning any cached credential from repository: US-Crackle-Demo-Projects (Git)
2018-03-17T21:02:44.1413004Z ##[command]git remote set-url origin https://daisami-online.visualstudio.com/_git/US-Crackle-Demo-Projects
2018-03-17T21:02:44.3340613Z ##[command]git remote set-url --push origin https://daisami-online.visualstudio.com/_git/US-Crackle-Demo-Projects
2018-03-17T21:02:44.3757483Z ##[section]Finishing: Post Job Cleanup
2018-03-17T21:02:44.4763369Z ##[section]Finishing: Job

Note: What will be error messages if you setup Private Agent account as "NT AUTHORITY\NETWORK SERVICE"

Your VM can't access " //./pipe/docker_engine: " and the build tasks will be failed.

DockerGetServiceReferences:
docker-compose -f "C:\agent\_work\1\s\Trunk\SFwithASPNetApp\docker-compose.yml" -f "C:\agent\_work\1\s\Trunk\SFwithASPNetApp\docker-compose.override.yml" -p dockercompose13733567670188849996 --no-ansi config
C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\MSBuild\Sdks\Microsoft.Docker.Sdk\build\Microsoft.VisualStudio.Docker.Compose.targets(195,5): Error MSB4018: The "GetServiceReferences" task failed unexpectedly.
C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\MSBuild\Sdks\Microsoft.Docker.Sdk\build\Microsoft.VisualStudio.Docker.Compose.targets(195,5): error MSB4018: The "GetServiceReferences" task failed unexpectedly. [C:\agent\_work\1\s\Trunk\SFwithASPNetApp\docker-compose.dcproj]
C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\MSBuild\Sdks\Microsoft.Docker.Sdk\build\Microsoft.VisualStudio.Docker.Compose.targets(195,5): error MSB4018: Microsoft.Docker.Utilities.CommandLineClientException: error during connect: Get http://%2F%2F.%2Fpipe%2Fdocker_engine/v1.30/version: open //./pipe/docker_engine: Access is denied. In the default daemon configuration on Windows, the docker client must be run elevated to connect. This error may also indicate that the docker daemon is not running.. [C:\agent\_work\1\s\Trunk\SFwithASPNetApp\docker-compose.dcproj]
C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\MSBuild\Sdks\Microsoft.Docker.Sdk\build\Microsoft.VisualStudio.Docker.Compose.targets(195,5): error MSB4018: [C:\agent\_work\1\s\Trunk\SFwithASPNetApp\docker-compose.dcproj]
C:\Program Files (x86)\Microsoft Visual Studio\2017\Community\MSBuild\Sdks\Microsoft.Docker.Sdk\build\Microsoft.VisualStudio.Docker.Compose.targets(195,5): error MSB4018: For more troubleshooting information, go to http://aka.ms/DockerToolsTroubleshooting ---> Microsoft.Docker.Utilities.CommandLineClientException: error during connect: Get http://%2F%2F.%2Fpipe%2Fdocker_engine/v1.30/version: open //./pipe/docker_engine: Access is denied. In the default daemon configuration on Windows, the docker client must be run elevated to connect. This error may also indicate that the docker daemon is not running. [C:\agent\_work\1\s\Trunk\SFwithASPNetApp\docker-compose.dcproj]

References

• Install Docker Compose | Docker Documentation
• Use command-line parameters to install Visual Studio - Visual Studio | Microsoft Docs

Add this comment at 8/8/2018 I found an article below. Refer this if your environment doesn't work well.
stackoverflow.com

How to build ASP.NET Framework Docker images on VSTS build tasks

As you know, Visual Studio Team Services offers to build Docker image tasks and Visual Studio offers Docker support. But there are some tips when you build ASP.NET Framework Docker images with VSTS build tasks. This post shows how to setup that.

You must note your OS versions of Docker images, because you must need to setup Private Agent if your base OS version is Windows Server version 1709. Refer below article at first if you need.
normalian.hatenablog.com

What's happened if you build ASP.NET Framework Docker images with default settings

You can choose "Add - Docker Support" like below if you have setup "Visual Studio Tools for Docker" in your machine. The tool is really useful and it will generate below Dockerfile in your ASP.NET Framework application.

FROM microsoft/aspnet:4.7.1-windowsservercore-1709
ARG source
WORKDIR /inetpub/wwwroot
COPY ${source:-obj/Docker/publish} .

Last "COPY" command line is a little bit tricky, because copy sources directory will change with ${source} variable value. The directory will be ${source} variable value if the value is set, but the directory will be obj/Docker/publish if ${source} variable isn't set.

This Dockerfile should work on your machine, but it won't work on VSTS build tasks like below.

2018-03-20T16:23:53.7207717Z ##[section]Starting: Build an image
2018-03-20T16:23:53.7213905Z ==============================================================================
2018-03-20T16:23:53.7214387Z Task         : Docker
2018-03-20T16:23:53.7214924Z Description  : Build, tag, push, or run Docker images, or run a Docker command. Task can be used with Docker or Azure Container registry.
2018-03-20T16:23:53.7215463Z Version      : 0.3.10
2018-03-20T16:23:53.7215860Z Author       : Microsoft Corporation
2018-03-20T16:23:53.7216376Z Help         : [More Information](https://go.microsoft.com/fwlink/?linkid=848006)
2018-03-20T16:23:53.7216914Z ==============================================================================
2018-03-20T16:23:54.9185089Z [command]"C:\Program Files\Docker\docker.exe" build -f C:\agent\_work\1\s\Trunk\SFwithASPNetApp\ASPNetApp01\Dockerfile -t xxxxxxxxxxxxxxxxxxxister.azurecr.io/yyyyyyyyyyy-demo-projects:80 C:\agent\_work\1\s\Trunk\SFwithASPNetApp\ASPNetApp01
2018-03-20T16:23:55.0276465Z Sending build context to Docker daemon  3.072kB
2018-03-20T16:23:55.0278113Z
2018-03-20T16:23:55.0302771Z Step 1/4 : FROM microsoft/aspnet:4.7.1-windowsservercore-1709
2018-03-20T16:23:55.0313682Z  ---> dc3f4d701ead
2018-03-20T16:23:55.0315249Z Step 2/4 : ARG source
2018-03-20T16:23:55.0326718Z  ---> Using cache
2018-03-20T16:23:55.0328908Z  ---> 9a10d9b50bc9
2018-03-20T16:23:55.0329320Z Step 3/4 : WORKDIR /inetpub/wwwroot
2018-03-20T16:23:55.0340016Z  ---> Using cache
2018-03-20T16:23:55.0342052Z  ---> 28d5a9cc0dd0
2018-03-20T16:23:55.0342974Z Step 4/4 : COPY ${source:-obj/Docker/publish} .
2018-03-20T16:23:55.0348449Z COPY failed: GetFileAttributesEx \\?\C:\Windows\TEMP\docker-builder521937930\obj\Docker\publish: The system cannot find the path specified.
2018-03-20T16:23:55.0575409Z ##[error]C:\Program Files\Docker\docker.exe failed with return code: 1
2018-03-20T16:23:55.0588673Z ##[section]Finishing: Build an image

What is workaround of the issue?

You need to setup both Visual Studio and VSTS in this case. Please follow below steps .

Setup in your ASP.NET Framework project
At first you need to setup new pubxml file in your ASP.NET Framework project to ensure output binaries into "obj\Docker\publish" directory, so choose "Publish" from right click menu of your ASP.NET Framework project like below.

Choose "Folder" as target and edit "Choose a folder" as "obj\Docker\publish" like below.

After setup the pubxml file, you can find it in your ASP.NET Framework like below. In this case, the filename is "FolderProfile.pubxml".

Setup in your VSTS tasks
You need to update "Build Solution" tasks at first. Please note to add "/p:PublishProfile=FolderProfile.pubxml" and remove "/p:WebPublishMethod=Package".

• "MSBuild Arguments" - before change

/p:DeployOnBuild=true /p:WebPublishMethod=Package /p:PackageAsSingleFile=true /p:SkipInvalidConfigurations=true /p:PackageLocation="$(build.artifactstagingdirectory)\\"

• "MSBuild Arguments" - after change

/p:DeployOnBuild=true /p:PackageAsSingleFile=true /p:SkipInvalidConfigurations=true /p:PackageLocation="$(build.artifactstagingdirectory)\\" /p:PublishProfile=FolderProfile.pubxml

After setup "Build Solution" tasks correctly, you can just add "Build an Image" task and specify "Docker file" correctly like below.

And you also need to add "Push an image" to store your Docker images into some registries. Note to specify as "Push an Image" not "Push images" like below.

You can find your Docker images in your Container registry if the build process on VSTS work correctly.

References

• Does not work out of the box. "The system cannot find the file specified" · Issue #65 · Microsoft/aspnet-docker · GitHub
• Visual Studio Tools for Docker with ASP.NET Core | Microsoft Docs
• docker - Dockerfile COPY {source:-...} - Stack Overflow
