How to create your own Azure Active Directory tenant

You sometimes want to create own tenant when you try to use Azure AD authentication or "School or Work Accounts" independently with your organization Azure AD tenant. Especially, you will really want to create it when you will be in charge of some PoC using Microsoft Azure. You can learn how to create your own Azure Active Directory tenant in this post.

Step by step to create new tenant in Azure portal

Please click "+ New" button in left side of Azure portal and input "Azure Active Directory" like below.

You can find "Azure Active Directory" by Microsoft like below, and please click "Create" button.

Input your organization name and domain name, equal "tenant name", and choose your region.

After a few minutes later, you can find your new tenant from upper-right like below.

References

• How to get an Azure Active Directory tenant
• Create an Azure Active Directory tenant

How to deploy your Azure Functions with VSTS when your project has multiple solutions

This article introduces how to deploy your Azure Functions with VSTS when your projects have multiple solutions like below. Please refer GitHub - AzureFunctions-CSharp-Sample if you need Azure Functions sample.

Your-Sample-Project
└─Trunk
    ├─HttpDemoFunctionApp
　　└─JobDemoFunctionApp
        └─JobDemoFunctionApp

How to setup this build process

Open "Build and Release" tab in your VSTS project, and click "+New" button like below.

Choose "ASP.NET Core (.NET Framework)" template like below.

After creating a process, choose"Hosted VS2017" as "Agent queue". You will get error when you run this process if you choose other Agents.

Choose your Azure Functions solution to deploy like below.

Add "Azure App Service Deploy" task like below.

After adding the task, choose your Azure Functions and change "Package or folder" from "$(System.DefaultWorkingDirectory)/**/*.zip" to "$(build.artifactstagingdirectory)/**/*.zip".

Tips

I got below error when I chose "Hosted" as "Agent queue", because the process failed to build my application. The cause was MSBuild didn't support Azure Functions application right now.

Got connection details for Azure App Service:'xxxxfunctionapp'

Error: No package found with specified pattern

Reference

• https://blogs.msdn.microsoft.com/appserviceteam/2017/06/01/deploying-visual-studio-2017-function-projects-with-vsts/
• https://docs.microsoft.com/en-us/vsts/build-release/concepts/definitions/build/variables?tabs=batch

How to create Hive tables via Ambari on Microsoft Azure HDInsight

As you know, HDInsight is powerful service to analyze, manage and process BigData on Microsoft Azure. You can create Hadoop, Storm, Spark and other clusters pretty easily! In this article, I will introduce how to create Hive tables via Ambari with cvs files stored in Azure Storage.
At first, you have to create your HDInsight cluster associated an Azure Storage account. In this article, I create a Spark 2.1.x cluster as HDInsight cluster.

Store CSV files into your Azure Storage

Upload your CSV files into the Azure Storage account. In this article, I upload Nikkei Average CSV file like below.

DATE,CLOSE,START,HIGH,LOW
2012/1/5,8488.71,8515.66,8519.16,8481.83
2012/1/6,8390.35,8488.98,8488.98,8349.33
2012/1/10,8422.26,8422.99,8450.59,8405.18
2012/1/11,8447.88,8440.96,8463.72,8426.03
2012/1/12,8385.59,8423.1,8426.83,8360.33
2012/1/13,8500.02,8471.1,8509.76,8458.68
2012/1/16,8378.36,8409.79,8409.79,8352.23
2012/1/17,8466.4,8420.12,8475.66,8413.22
2012/1/18,8550.58,8458.29,8595.78,8446.09
2012/1/19,8639.68,8596.68,8668.94,8596.68
2012/1/20,8766.36,8751.18,8791.39,8725.32
2012/1/23,8765.9,8753.91,8795.27,8744.54
2012/1/24,8785.33,8815.36,8825.09,8768.51
2012/1/25,8883.69,8842.01,8911.62,8816.09
2012/1/26,8849.47,8890.49,8894.6,8834.93
2012/1/27,8841.22,8851.02,8886.02,8810.89
2012/1/30,8793.05,8803.79,8832.48,8774.23
2012/1/31,8802.51,8781.44,8836.68,8776.65

It's stored into Azure Storage account associated with HDInsight cluster, and its path is described as "https://"storage-account-name"."spark-container-name".blob.core.windows.net/financedata/nikkei_stock_average_daily_en.csv". You can specify the path in Hive query as "wasb://"spark-container-name"@"storage-account-name".blob.core.windows.net/financedata/nikkei_stock_average_daily_en.csv".

Create Hive tables from your CSV files

Open https://portal.azure.com/ and choose your HDInsight cluster. You can open Ambari portal to click a link of "https://'your-cluster-name'.azurehdinsight.net" in "Overview" page. Next, click "Hive View 2.0" button like below.

Now, you can execute Hive query using below portal site.

Copy below query and execute it into the site.

CREATE EXTERNAL TABLE DEFAULT.NIKKEIAVERAGE_TABLE(
  `DATE` STRING,
  `CLOSE` STRING,
  `START` STRING,
  `HIGH` STRING,
  `LOW` STRING
) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',' lines terminated by '\n'
STORED AS TEXTFILE LOCATION 'wasb://"spark-container-name"@"storage-account-name".blob.core.windows.net/financedata/nikkei_stock_average_daily_en.csv';

LOAD DATA INPATH 'wasb://"spark-container-name"@"storage-account-name".blob.core.windows.net/financedata/nikkei_stock_average_daily_en.csv' INTO TABLE DEFAULT.NIKKEIAVERAGE_TABLE;

Check your query result

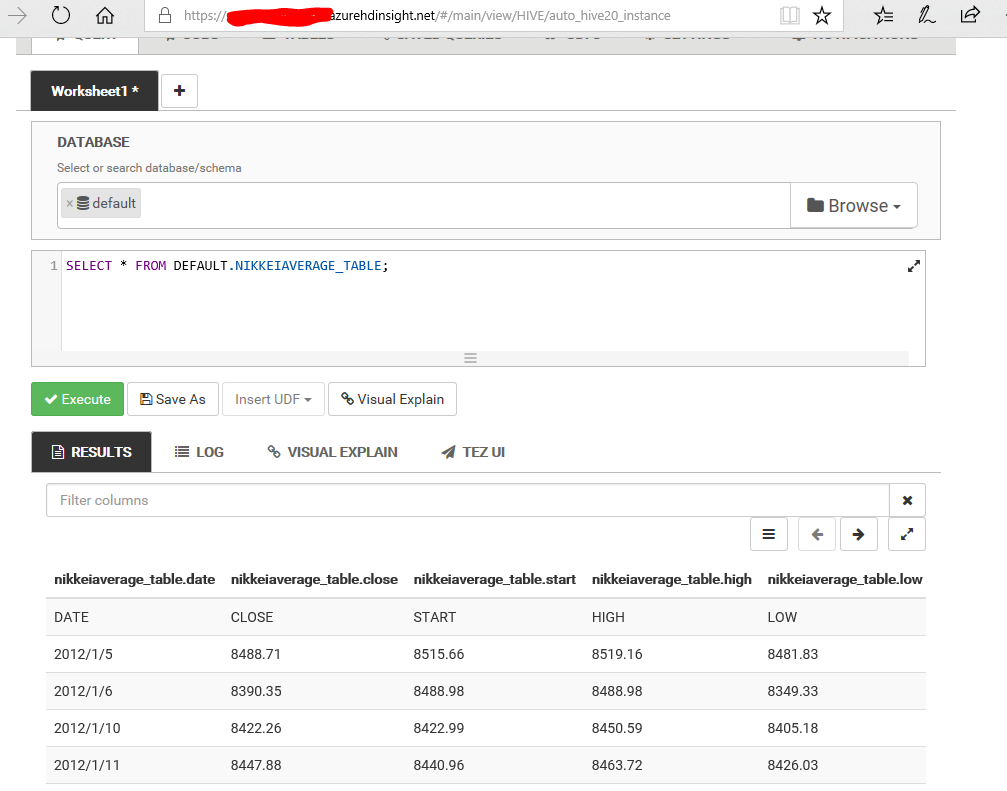

After executing your query, run below query to check the data in Ambari.

SELECT * FROM DEFAULT.NIKKEIAVERAGE_TABLE;

So, you can get below result.

Referebce

• Create Hive tables and load data from Azure Blob Storage | Microsoft Docs

How to copy comma separated CSV files into Azure SQL Database with Azure Data Factory

You can learn how to copy data of CSV files into SQL Database with Azure Data Factory following this post. Please note, you must install SSMS from Download SQL Server Management Studio (SSMS) before following this post.
After setting up SSMS, follow below step to copy data of CSV files into SQL Database.

• Upload CSV files into Azure Storage
• Create a table in your SQL Database
• Copy CSV files into your SQL Database with Azure Data Factory

After downloading "USDJPY.csv" file from http://www.m2j.co.jp/market/historical.php, upload the file into your Azure Storage.

Create a table in your SQL Database

Setup your SQL Database instance if you don't have it. After creating the instance, setup firewall following Azure SQL Database server-level and database-level firewall rules to access with "sqlcmd" command from your computer.
Execute below command from your client computer. And note to execute below with one liner, because I just add line breaks to read easily.

normalian> sqlcmd.exe -S "server name".database.windows.net -d "database name" -U "username"@"server name" -P "password" -I -Q
"CREATE TABLE [dbo].[USDJPY]
(
    [ID] INT NOT NULL PRIMARY KEY IDENTITY(1,1),
    [DATE] DATETIME NOT NULL,
    [OPEN] FLOAT NOT NULL,
    [HIGH] FLOAT NOT NULL,
    [LOW] FLOAT NOT NULL,
    [CLOSE] FLOAT NOT NULL
)"

You can remove the table using below command if you mistake something for this setting.

normalian> sqlcmd.exe -S "server name".database.windows.net -d "database name" -U "username"@"server name" -P "password" -I -Q "DROP TABLE [dbo].[USDJPY]"

Copy CSV files into your SQL Database with Azure Data Factory

At first, create your Azure Data Factory instance. And choose "Copy data(PREVIEW)" button like below.

Next, choose "Run once now" to copy your CSV files.

Choose "Azure Blob Storage" as your "source data store", specify your Azure Storage which you stored CSV files.

Choose your CSV files from your Azure Storage.

Choose "Comma" as your CSV files delimiter and input "Skip line count" number if your CSV file has headers.

Choose "Azure SQL Database" as your "destination data store".

Input your "Azure SQL Database" info to specify your instance.

Select your table from your SQL Database instance.

Check your data mapping.

Execute data copy from CSV files to SQL Database just confirming next wizards.

After completing this pipeline, execute below command in your machine. You can get data from SQL Database.

normalian> sqlcmd.exe -S "server name".database.windows.net -d "database name" -U "username"@"server name" -P "password" -I -Q "SELECT * FROM [dbo].[USDJPY] ORDER BY 1;"

You can get some data from SQL Database if you have setup correctly.

References

• Create joined query result from Nikkei and DJIA using Spark APIs with HDInsight
• Load data from CSV into Azure SQL Database (flat files)
• Azure SQL Database server-level and database-level firewall rules
• Download SQL Server Management Studio (SSMS)

Create joined query result from Nikkei and DJIA using Spark APIs with HDInsight

In previous topic, I have introduced how to use Hive tables with HDInsight in How to use Hive tables in HDInsight cluster with Nikkei and DJIA. I will introduce how to use Spark APIs with HDInsight in this topic.

requirements

You have to complete below requirements to follow this topic.

• Download Nikkei, DJIA, USD/JPY CSV files
  • USD/JPY CSV files: Go to http://www.m2j.co.jp/market/historical.php, and download from "日足" link
  • Refer previous topic to download Nikkei and DJIA csv files
• Create HDInsight Spark Cluster in your Azure subscriptions
• Install IntelliJ and Azure plugin
  • Install IntelliJ plugin with refering https://docs.microsoft.com/en-us/azure/azure-toolkit-for-intellij-installation

Modify csv file titles

You have already downloaded USDJPY.csv and nikkei_stock_average_daily_jp.csv files, but titles of the csv files are written by Japanese. Modify the titles into English to use from Spark APIs easily like below.

• USDJPY.csv file

日付,始値,高値,安値,終値
2007/04/02,117.84,118.08,117.46,117.84

DATE,OPEN,HIGH,LOW,CLOSE
2007/04/02,117.84,118.08,117.46,117.84

• nikkei_stock_average_daily_jp.csv

データ日付,終値,始値,高値,安値
"2014/01/06","15908.88","16147.54","16164.01","15864.44"

DATE,CLOSE,OPEN,HIGH,LOW
"2014/01/06","15908.88","16147.54","16164.01","15864.44"

And save the csv files as "USDJPY_en.csv" and "nikkei_stock_average_daily_en.csv". And upload the csv files into your Azure Storage associated with your Spark cluster like below.

Refer below URL and Path example if you can't figure out which path you should locate the csv files, because some people sometimes confuse them.

• URL: https://hellosparkatxxxxxxxtorage.blob.core.windows.net/hellosparkxxxxxxx-2017-08-77777-33-yy-zzz/financedata/nikkei_stock_average_daily_en.csv
• Path from Spark API or Hive: "wasb://hellosparkxxxxxxx-2017-08-77777-33-yy-zzz@hellosparkatxxxxxxxtorage.blob.core.windows.net/financedata/nikkei_stock_average_daily_en.csv"

Create Spark application with Scala

At first, refer https://docs.microsoft.com/en-us/azure/hdinsight/hdinsight-apache-spark-intellij-tool-plugin. You have to follow the topic until "Run a Spark Scala application on an HDInsight Spark cluster" at section "Run a Spark Scala application on an HDInsight Spark cluster". Now, you have a skeleton of your spark application. Update your scala file like below.

import org.apache.spark.SparkConf
import org.apache.spark.SparkContext
import org.apache.spark.sql.types.TimestampType
import org.apache.spark.sql.{SaveMode, SparkSession}

object MyClusterApp {
  def main(args: Array[String]): Unit = {
    val spark = SparkSession.builder().appName("MyClusterApp").getOrCreate()

    val dataset_djia = "wasb://hellosparkxxxxxxx-2017-08-77777-33-yy-zzz@hellosparkatxxxxxxxtorage.blob.core.windows.net/financedata/DJIA.csv"
    val dataset_nikkei = "wasb://hellosparkxxxxxxx-2017-08-77777-33-yy-zzz@hellosparkatxxxxxxxtorage.blob.core.windows.net/financedata/nikkei_stock_average_daily_en.csv"
    val dataset_usdjpy = "wasb://hellosparkxxxxxxx-2017-08-77777-33-yy-zzz@hellosparkatxxxxxxxtorage.blob.core.windows.net/financedata/USDJPY_en.csv"

    // Load csv files and create a DataFrame in temp view, you have to change this when your data will be massive
    val df_djia = spark.read.options(Map("header" -> "true", "inferSchema" -> "true", "ignoreLeadingWhiteSpace" -> "true")).csv(dataset_djia)
    df_djia.createOrReplaceTempView("djia_table")
    val df_nikkei = spark.read.options(Map("header" -> "true", "inferSchema" -> "true", "ignoreLeadingWhiteSpace" -> "true")).csv(dataset_nikkei)
    df_nikkei.createOrReplaceTempView("nikkei_table")
    val df_usdjpy = spark.read.options(Map("header" -> "true", "inferSchema" -> "true", "ignoreLeadingWhiteSpace" -> "true")).csv(dataset_usdjpy)
    df_usdjpy.createOrReplaceTempView("usdjpy_table")

    // Spark reads DJIA date as "DATE" type but it reads Nikkei and USDJPY date as "STRING", so you have to cast the data type like below.
    val retDf = spark.sql("SELECT djia_table.DATE, djia_table.DJIA, nikkei_table.CLOSE/usdjpy_table.CLOSE as Nikkei_Dollar FROM djia_table INNER JOIN nikkei_table ON djia_table.DATE = from_unixtime(unix_timestamp(nikkei_table.DATE , 'yyyy/MM/dd')) INNER JOIN usdjpy_table on djia_table.DATE = from_unixtime(unix_timestamp(usdjpy_table.DATE , 'yyyy/MM/dd'))")
    //val retDf = spark.sql("SELECT * FROM usdjpy_table")
    retDf.write
      .mode(SaveMode.Overwrite)
      .format("com.databricks.spark.csv")
      .option("header", "true")
      .save("wasb://hellosparkxxxxxxx-2017-08-77777-33-yy-zzz@hellosparkatxxxxxxxtorage.blob.core.windows.net/financedata/sparkresult")
  }
}

After updating your scala file, run the application following https://docs.microsoft.com/en-us/azure/hdinsight/hdinsight-apache-spark-intellij-tool-plugin. You can find result files in your Azure Storage like below if your setup is correct!

Download the part-xxxxxxxxxxxxxxx-xxx-xxxxx.csv file and check the content, and you can get date, DJIA dollar and Nikkei dollar data like below.

DATE,DJIA,Nikkei_Dollar
2014-01-06T00:00:00.000Z,16425.10,152.64709268854347
2014-01-07T00:00:00.000Z,16530.94,151.23238022377356
2014-01-08T00:00:00.000Z,16462.74,153.77193819152996
2014-01-09T00:00:00.000Z,16444.76,151.54432674873556
2014-01-10T00:00:00.000Z,16437.05,152.83892037268274
2014-01-14T00:00:00.000Z,16373.86,148.021883098186
2014-01-15T00:00:00.000Z,16481.94,151.22182896498947
2014-01-16T00:00:00.000Z,16417.01,150.96539162112933
2014-01-17T00:00:00.000Z,16458.56,150.79988499137434
2014-01-20T00:00:00.000Z,.,150.18415746519443
2014-01-21T00:00:00.000Z,16414.44,151.47640966628308
2014-01-22T00:00:00.000Z,16373.34,151.39674641148324
2014-01-23T00:00:00.000Z,16197.35,151.97414794732765
2014-01-24T00:00:00.000Z,15879.11,150.54342723004694

How to use Hive tables in HDInsight cluster with Nikkei and DJIA

As you know, Nikkei Stock Average called Nikkei and Dow Jones Industrial Average called by DJIA are both famous stock market indexes. We can get daily data of them easily from below sites.

• DJIA https://fred.stlouisfed.org/series/DJIA
• Nikkei 225: Go to https://indexes.nikkei.co.jp/nkave/index/profile?idx=nk225, and click "日次データ(CSV)"

This topic introduces how to use hive tables with Nikkei and DJIA.

Create a HDInsight cluster

Go to Azure Portal and create new HDInsight cluster! In this sample, I choose HDInsight Spark Cluster, but it's not matter to choose other component which are available to use Hive. Please create or associate a Azure Storage to your cluster like below when you create it, because CSV data will be stored into the Azure Storage.

Create Nikkei and DJIA Hive Tables

Go to cluster portal called Ambari, and its URL is https://"your cluster name".azurehdinsight.net/. Click top right side button on the portal and choose "Hive View" to use Hive query.

And execute below Hive query in the portal.

CREATE DATABASE IF NOT EXISTS FINANCEDB;

DROP TABLE FINANCEDB.DJIATABLE;
CREATE EXTERNAL TABLE FINANCEDB.DJIATABLE
(
    `DATE` STRING,
    `DJIA` DOUBLE
) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',' lines terminated by '\n' STORED AS TEXTFILE LOCATION 'wasbs:///financedata/DJIA.csv' TBLPROPERTIES("skip.header.line.count"="1");

DROP TABLE FINANCEDB.NIKKEITABLE;
CREATE EXTERNAL TABLE FINANCEDB.NIKKEITABLE
(
    `DATE` STRING,
    `NIKKEI` DOUBLE,
    `START` DOUBLE,
    `HIGHEST` DOUBLE,
    `LOWEST` DOUBLE
) ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.OpenCSVSerde'
WITH SERDEPROPERTIES (
   "separatorChar" = ",",
   "quoteChar"     = "\""
) STORED AS TEXTFILE LOCATION 'wasbs:///financedata/nikkei_stock_average_daily_jp.csv' TBLPROPERTIES("skip.header.line.count"="1");

Now, you can watch your hive table names in your Azure Storage which you have associated in your HDInsight cluster.

Note those BLOB files are size zero. You should avoid to upload data before executing above queries, because you will get below errors when you execute the queries if you upload them before it.

 java.sql.SQLException: Error while processing statement: FAILED: Execution Error, return code 1 from org.apache.hadoop.hive.ql.exec.DDLTask. MetaException(message:wasbs://helloxxxxxxxxxxxxxx-2017-08-31t01-26-06-194z@hellosparyyyyyyyyyy.blob.core.windows.net/financedata/DJIA.csv is not a directory or unable to create one)

After executing CREATE TABLE queries, upload CSV data into the Azure Storage and override existing BLOB files like below.

Confirm Hive Tables data

Go to "Hive View" in Ambari again, and execute below queries separately to avoid override. You can get some result data if your setup is correct.

SELECT * FROM FINANCEDB.DJIATABLE LIMIT 5;
SELECT * FROM FINANCEDB.NIKKEITABLE LIMIT 5;

You should check "TEXTFILE LOCATION" path and "default container" for HDInsight cluster in the Azure Storage if you can't get any data from the queries. Full path of a CSV file is "https://hellosparyyyyyyyyyy.blob.core.windows.net/helloxxxxxxxxxxxxxx-2017-08-31t01-26-06-194z/financedata/DJIA.csv, but some people confuse "default container" path.

Extract data as joined one using Nikkei and DJIA Hive tables

Execute below query to get data with joind one, because Nikkei CSV file expresses date as "2014/01/06" and DJIA one expresses date as "2013-12-16".

SELECT d.`DATE`, d.DJIA, n.NIKKEI
FROM FINANCEDB.DJIATABLE d JOIN FINANCEDB.NIKKEITABLE n
ON ( regexp_replace(d.`DATE`, '-', '') = regexp_replace(n.`DATE`, '/', '') ) LIMIT 5;

You can view below query result if you have setup correctly, but please note Nikkei is expressed as "YEN" and DJIA is expressed as "Dollar". Please improve this sample to express same concurrency if it's possible!

References

• How to load CSV data with enclosed by double quotes and separated by tab into HIVE table? https://stackoverflow.com/questions/30637536/how-to-load-csv-data-with-enclosed-by-double-quotes-and-separated-by-tab-into-hi
• how to replace characters in hive? https://stackoverflow.com/questions/18090481/how-to-replace-characters-in-hive

Data copy from FTP server to SQL Data Lake using Azure Data Factory

You can achieve to setup data copy scenarios with Azure Data Factory from your FTP server to your SQL Data Lake by following this article. I believe this scenario is quite simple, but you can avoid to be confused by utilizing this article.

How to setup FTP server on Microsoft Azure

Create a Linux, CentOS7, virtual machine at first. After that, connect the VM with ssh, and run below commands.

[root@ftpsourcevm ~]# sudo su -
[root@ftpsourcevm ~]# yum -y update && yum -y install vsftpd

Please setup this vsftp server as passive mode with below sample. As far as I have confirmed, Azure Data Factory supports only passive mode ftp servers.

[root@ftpsourcevm ~]# vi /etc/vsftpd/vsftpd.conf

# When "listen" directive is enabled, vsftpd runs in standalone mode and
# listens on IPv4 sockets. This directive cannot be used in conjunction
# with the listen_ipv6 directive.
listen=YES
#
# This directive enables listening on IPv6 sockets. By default, listening
# on the IPv6 "any" address (::) will accept connections from both IPv6
# and IPv4 clients. It is not necessary to listen on *both* IPv4 and IPv6
# sockets. If you want that (perhaps because you want to listen on specific
# addresses) then you must run two copies of vsftpd with two configuration
# files.
# Make sure, that one of the listen options is commented !!
listen_ipv6=NO

pam_service_name=vsftpd
userlist_enable=YES
tcp_wrappers=YES

pasv_enable=YES
pasv_addr_resolve=YES
pasv_min_port=60001 ( you need add this port to this VM NSG setup
pasv_max_port=60010 ( you need add this port to this VM NSG setup
pasv_address=(update global ip address of your ftp server vm e.g. 52.1xx.47.xx)

Run below commands to reflect your config change.

[root@ftpsourcevm ~]# systemctl restart vsftpd
[root@ftpsourcevm ~]# systemctl enable vsftpd

Finally, you need to add allow port configuration between pasv_min_port and pasv_max_port into NSG. Please refer below image.

How to setup Azure Data Lake for Azure Data Factory

Just create your Azure Data Lake instance, and add a directory for Azure Data Factory like below.

How to setup Azure Data Factory to copy from your FTP server to your Azure Data Lake

After creating your Azure Data Factory instance, choose "Copy data (PREVIEW)" to setup this.

Change this schedule period if it's needed.

Choose "FTP" as "CONNECT TO A DATA SOURCE", but you can also choose other data sources such like S3 and other cloud data sources.

Change to "Disable SSL" at "Secure Transmission" in this sample, and please setup SSL when you will deploy this pipeline in your production environments. Input a global in address of your ftp server and credential account info of your ftp server. You will get a connection error if you setup active mode FTP servers.

Choose a folder for data source of Azure Data Factory. In this sample, we setup as binary copy mode. But you can setup other data copy types such like cvs and others.

Choose "Azure Data Lake Store" as "CONNECT TO A DATA STORE" in this article.

Choose your Azure Data Lake Store instance for storing data like below.

Choose a folder for data storing destination.

Confirm your setup info, and submit to deploy this pipeline.

Confirm your setup

You can view your data copy pipeline in your Azure Data Factory like below. Azure Data Factory will copy your data on your FTP server into your Azure Data Lake following your schedule.

Reference

• https://www.liquidweb.com/kb/how-to-install-and-configure-vsftpd-on-centos-7/
• http://www.itzgeek.com/how-tos/linux/centos-how-tos/enable-passive-mode-in-ftp-on-centos-7-rhel-7-for-filezilla-and-winscp.html
• http://qiita.com/dogyear/items/289b314db9af42e15cfa
• http://dev.classmethod.jp/cloud/aws/to-be-aware-of-when-settingup-ftpserver-with-aws/
• Switch "Secure Transmission" to "Disable SSL" https://docs.microsoft.com/en-us/azure/data-factory/data-factory-scheduling-and-execution
• https://docs.microsoft.com/en-us/azure/data-factory/data-factory-ftp-connector
